The EVS-1500 is a Dual Field of View Enhanced Vision System designed by pilots for improved situational awareness in all phases of rotary and fixed wing flight operations. The Max-Viz EVS-1500 sets the standard for Enhanced Vision Systems for aviation.

Based on thousands of hours of actual flight ex­perience, both in fixed and rotor wing operations, the Max-Viz EVS-1500 offers not only the best sensitivity and image clarity, but also pilot friendly features that enhance the system's performance in all the phases of flight; from taxi, to takeoff, through cruise, to approach and landing.

Features like a pilot selectable dual field of view; a feature that allows pilots to select wide angle or telephoto views of the world. The wide angle gives maximum peripheral visibility during ground opera-tions and the zoom provides early runway acquisi­tion and detection of incursions during takeoff, ap­proach and landing.

For current Max-Viz EVS customers, flying the EVS-1000, upgrade to the EVS-1500 is fast and easy. Identical in form to the EVS-1000, conversion to the EVS-1500 is simply a matter of replacing components and addition of one wire and switch. No additional structural modifications are required. New customers for the EVS-1500 will enjoy the benefit of installing new leading edge EVS system backed by thousands of hours of proven flight reli­ability on virtually every popular civil fixed and rotor wing turbine aircraft in operation today.

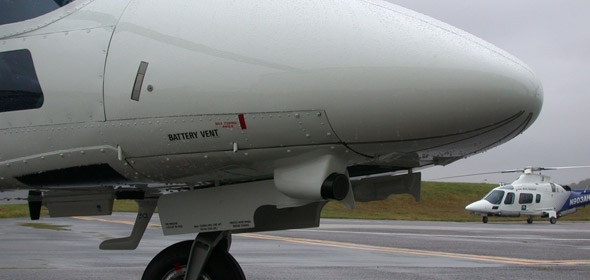

Agusta A-109 Helicopters / EVS-1500

EVS-1500 Specifications

• General Lightweight, solid state, uncooled Thermal Imaging Camera with advanced image process­ing software
• Sensor Tech- Un-cooled solid state microbolometer technology
• Field of View Pilot selectable dual field of view - 53 x 40 or 30 x 22.5 degrees Optical zoom - no loss in resolution
• Resolution 320 x 240 pixels
• Size Camera: 2.8" (71mm) diameter x 6.8" (172 mm) length Power Module: 3.75" (95mm) width x 5.0' (127mm) height x 2.25" (57.2mm) depth
• Weight Camera: 2.5 Lbs (1.13kg) Power Module: 2.5 Lbs (1.13kg)
• Power Electronics: 10 watts typical; 15 watts peak at 28VDC Environmental: 50 watts average; 125 watts maximum with heater
• Environmental Certified to DO-160E
• Qualifications Fully EMI/RFI and power conditioned
• Reliability 15,000 hours MTBF

EVS-1000 Certifications are currently being amended for the EVS-1500

Fixed and Rotary Wing
Bombardier Global Express Agusta 109E Cessna 500/501, expect 3Q 07 Bell 206A, 206B, 206L, 206L1, 206L3, 206L4, 407 Cessna Citation II, expect 3Q 07 Bell 212/412/412EP Cessna XL/XLS (560 family) Eurocopter EC 135 P1, P2, T1, T2 Challenger 600, 601 & 604 Eurocopter EC 145, BK 117 Challenger 601-3A Sikorsky S-76 A/B/C Falcon 2000 Falcon 50 & 50EX Falcon 900 A, B, C & 900EX Gulfstream G III, IV, V King Air 90/200/300/350, expect 2Q 07 Lear 60 PC-12 12/45

Max-Viz supplies Infrared Enhanced Vision Systems for a broad range of aircraft applications; from single and multi-engine aircraft, helicopters, and low altitude turboprop and light jet aircraft to corporate jets , helicopters and airline transport aircraft.

Built for enhanced visibility and safety in jet aircraft and rugged utility helicopter flight environments, Max-Viz EVS-1500 series products provide functional features not found in the competition-features like pilot selectable dual fields of view, automatic image gain control and simple, inexpensive product upgrade paths within the same form factor.

Cessna / EVS-1500
